Private backhaul for 5G RAN in Yambu
TABLE OF CONTENT
- Backhaul privada para RAN 5G en Yambu
- Backhaul network backup links
- Executive Curriculum Vitae
- Technical Portfolio
- Example projects
- Letters of reccomendation
Backhaul points of presence

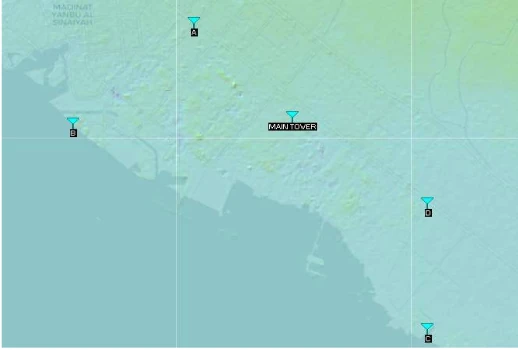

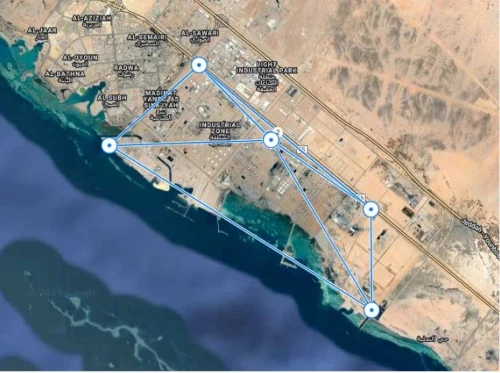

We need to service the five towers with redundant backhaul technology. We are using two unlicensed bands: 60 GHz for the primary point-to-point connection and 5 GHz for redundant failover backups. Geographic points are estimated, except for the "MAIN TOWER," which appears to already exist. Satellite topographic data is used for terrain southveying and radio coverage.
Complete backhaul network design
Four point-to-point backhaul links, operating at 60 GHz with automatic 5 GHz backup, prevent damage from torrential rain and connect the MAIN TOWER to towers A, B, C, and D. Another four point-to-point backhaul links, operating at 5 GHz, prevent hardware failures by connecting A to B, B to C, C to D, and D to A.

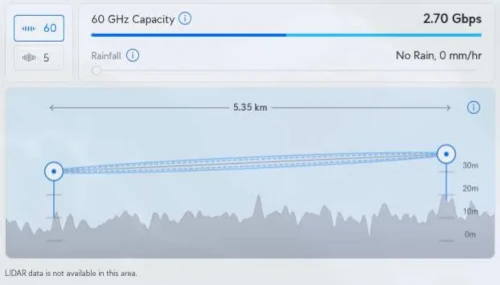

Main tower link to tower A
| Type | Description | Data |
|---|---|---|
| Frequency | SELECTED BY ARTIFICIAL INTELLIGENCE BETWEEN 58320 MHz and 69120 MHz. | |
| Installation height | 20 meters. | |
| Distance between antennas | 5.35 kilometers | |
| Azimuth main tower, A | 316 degree north / west | |
| Azimuth A, main tower | 136 degree south / east | |
| Estimated signal | -41 dBm | |
| Estimated throughput | 2.7 gbps |
====

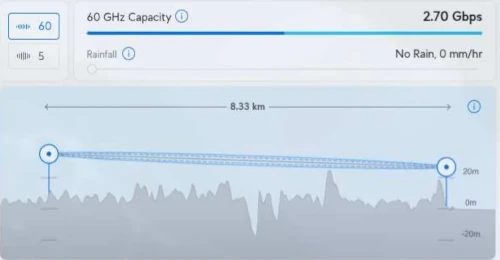

Main tower link to tower B
| Type | Description | Data |
|---|---|---|
| Frequency | SELECTED BY ARTIFICIAL INTELLIGENCE BETWEEN 58320 MHz and 69120 MHz. | |
| Installation height | 25 meters. | |
| Distance between antennas | 8.33 kilometers | |
| Main tower azimuth, B | 268 degree west | |
| Azimuth B, main tower | 88 degree east | |
| Estimated signal | -47 dBm | |
| Estimated throughput | 2.7 gbps |
====
Main tower link to tower C
| Type | Description | Data |
|---|---|---|
| Frequency | SELECTED BY ARTIFICIAL INTELLIGENCE BETWEEN 58320 MHz and 69120 MHz. | |
| Installation height | 30 meters. | |

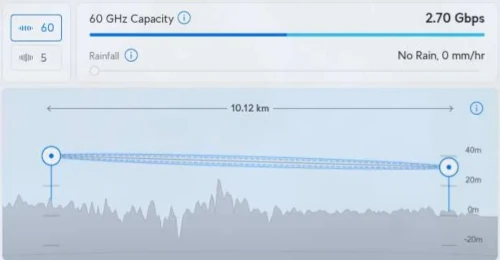

| Distance between antennas | 10.12 kilometers | |
| Azimuth main tower, C | 149 degree south / east | |
| Azimuth C, main tower | 329 degree north / west | |
| Estimated signal | -50 dBm | |
| Estimated throughput | 2.7 gbps |
====
Main Tower link to Tower D
| Type | Description | Data |
|---|---|---|
| Frequency | SELECTED BY ARTIFICIAL INTELLIGENCE BETWEEN 58320 MHz and 69120 MHz. | |
| Installation height | 20 meters. | |

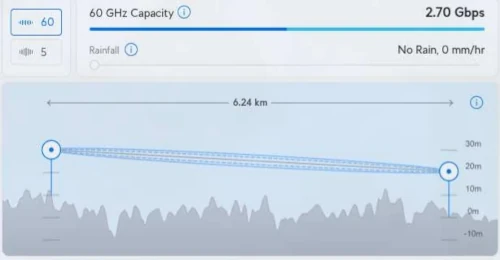

| Distance between antennas | 6.24 kilometers | |
| Azimuth main tower, D | 125 degree south / east | |
| Azimuth D, main tower | 305 degree north / west | |
| Estimated signal | -47 dBm | |
| Estimated throughput | 2.7 gbps |
====
Backup link backhaul network
====
Backup link from tower A to tower B
| Type | Description | Data |
|---|---|---|
| Frequency | Automatic on the 5GHz band | |
| Installation height | 30 meters. | |

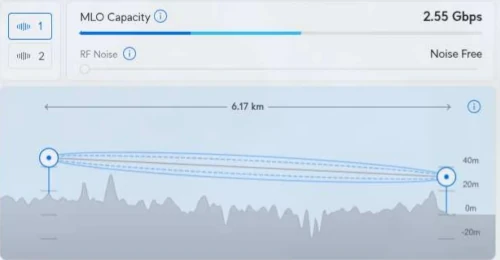

| Distance between antennas | 6.17 kilometers | |
| Azimuth A, B | 125 degree south / east | |
| Azimuth B, A | 305 degree north / west | |
| Estimated signal | -47 dBm | |
| Estimated throughput | 2.55 gbps |
====
Backup link from tower B to tower C
| Type | Description | Data |
|---|---|---|
| Frequency | Automatic on the 5GHz band | |
| Installation height | 30 meters. | |

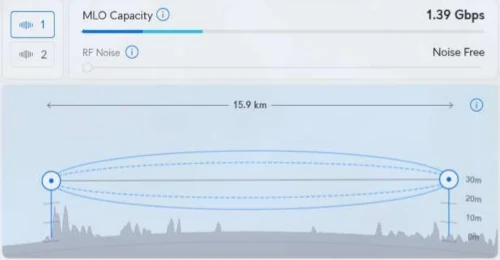

| Distance between antennas | 15.9 kilometers | |
| Azimuth B, C | 122 degree south / east | |
| Azimuth C, B | 302 degree north / west | |
| Estimated signal | -70 dBm | |
| Estimated throughput | 1.39 gbps |
====
Backup link from tower C to tower D
| Type | Description | Data |
|---|---|---|
| Frequency | Automatic on the 5GHz band | |
| Installation height | 30 meters. | |

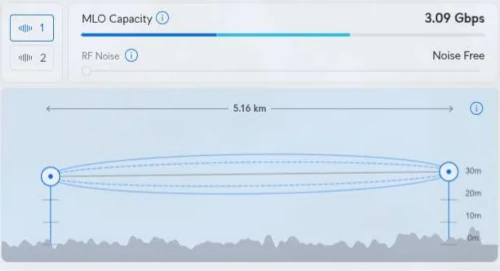

| Distance between antennas | 5.16 kilometers | |
| Azimuth C, D | 360 degree north | |
| Azimuth D, C | 180 degree south | |
| Estimated signal | -61 dBm | |
| Estimated throughput | 3.09 gbps |
====
Backup link from tower D to tower A
| Type | Description | Data |
|---|---|---|
| Frequency | Automatic on the 5GHz band | |
| Installation height | 25 meters. | |

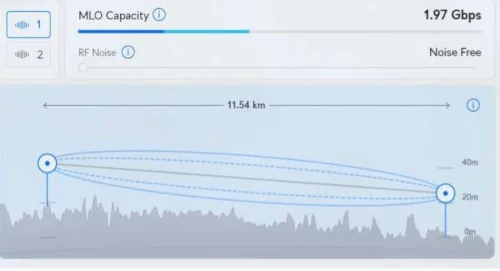

| Distance between antennas | 11.54 kilometers | |
| Azimuth C, D | 310 degree north | |
| Azimuth D, C | 130 degree south | |
| Estimated signal | -68 dBm | |
| Estimated throughput | 1.97 gbps |
